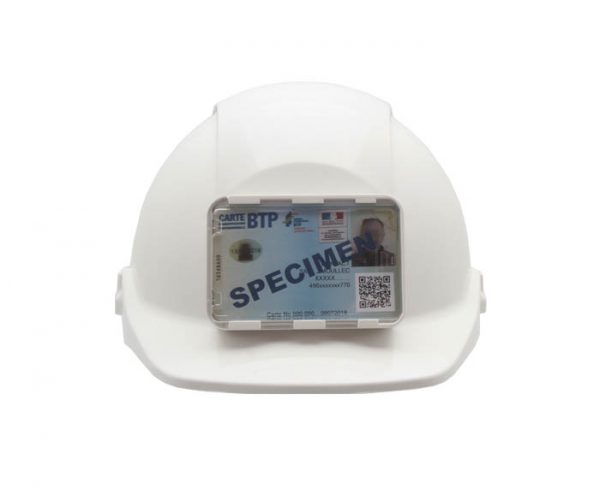

Concept with Badge Holder

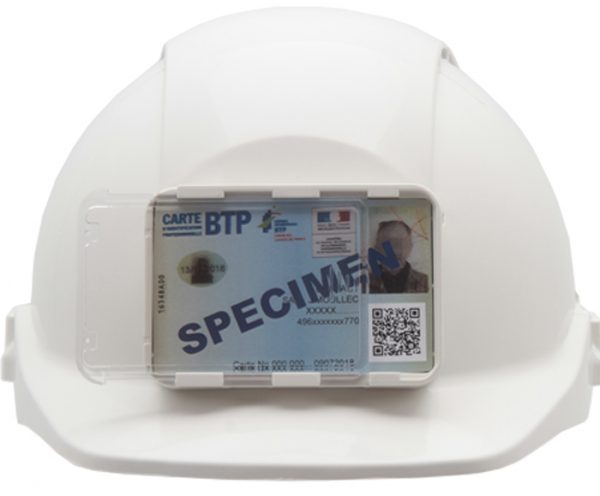

High safety with low weight. Reassuring strength with feel-good comfort combined with the NEW badge holder fitted. The badge holder system combines premium adhesive and an easy ‘click lock’ functionality for added security. 40 kg pull resistance.

  • Secure robust badge holder system
  • Suitable for displaying name cards or medical details
  • Manufactured from high quality, strong ABS material, the Concept is up to 20% lighter than most other helmets
  • High performance ABS shell allows for optimal strength to weight ratio
  • Unique extended nape ensures enhanced neck protection
Categories: ,
  • Description
  • Downloads

Description

Approved To
Helmet approved to: EN 397, 1000V a.c – unvented shells only, LD, -40°C,
EN 50365
ANSI/ISEA Z89.1-2014 Type 1 Class C (Class E – unvented shell only).

Key Features
Helmet Material: High performance ABS shell allows for optimal strength to weight ratio

Badge Holder Material: White ABS and Door Clear Polycarbonate

Helmet Peak Size: Full (40mm)
Reduced (20mm)

Badge Holder Size: 85mm x 54mm

Product Codes: S09C*ACBH Full Peak Slip Ratchet Non-Vented
S08C*ACBH Reduced Peak Slip Ratchet Non-Vented
S09C*FCBH Full Peak Slip Ratchet Vented
S08C*FCBH Reduced Peak Slip Ratchet Vented
S09C*RCBH Full Peak Wheel Ratchet Non-Vented
S08C*RCBH Reduced Peak Wheel Ratchet Non-Vented
S09C*RFCBH Full Peak Wheel Ratchet Vented
S08C*RFCBH Reduced Peak Wheel Ratchet Vented
S08C*RLCBH SecurePlus Reduced Peak Wheel Ratchet Non-Vented
S08C*LCBH SecurePlus Reduced Peak Slip Ratchet Non-Vented
S08C*RLFCBH SecurePlus Reduced Peak Wheel Ratchet Vented
S08C*LFCBH SecurePlus Reduced Peak Slip Ratchet Vented

Technical information

Instructions (PDF)

Data Sheet (PDF)
