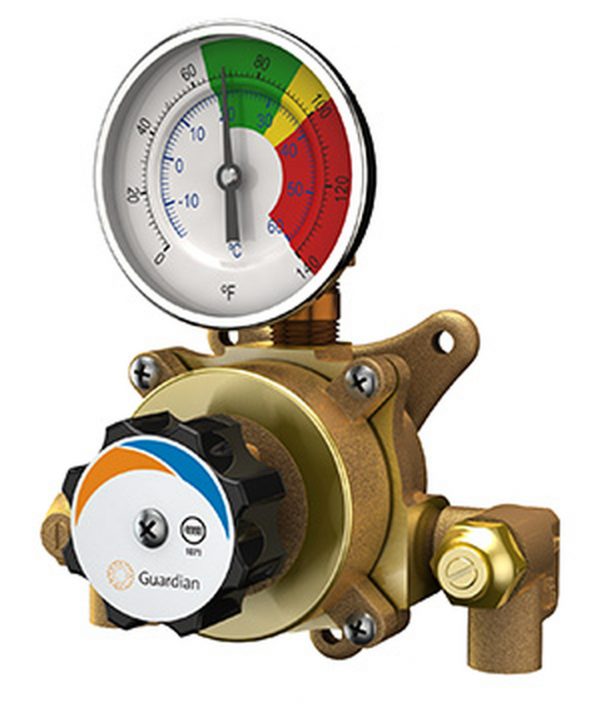

GUARDIAN TEMPERING VALVE, 6 GALLON CAPACITY MODEL : G3600LF
Mixing valve, thermostatic, for eyewash assembly, blends hot and cold water to deliver warm (tepid) water, use with G1814BC eyewash unit, sold by the each
