Read moreQuick ViewGUARDIAN EYE/FACE WASH, WALL MOUNTED AUTOFLOW 90º SWING-DOWN, All-STAINLESS STEEL MODEL : G1798
Application: All-stainless steel AutoFlow™ eye/face wash for mounting on wall. Unit is constructed entirely in stainless steel. Ideal for use in highly corrosive environments, cleanrooms and pharmaceutical applications. Spray heads swing down from storage to operational position, activating water flow. Available in a variety of spray head configurations to minimize obstructions at a sink. Note: If unit is not installed at a sink, floor drain should be provided underneath unit to prevent accumulation of water on floor.
Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS stainless steel plug-type valve with PTFE coated O-ring seals. Swinging head assembly down from storage to operational position opens orifice and activates water flow. Unit remains in operation until head assembly is returned to storage position.
Mounting: Valve is installed in Type 316 stainless steel housing. Mount housing on wall using anchors or other mounting hardware.
Construction: Type 316 stainless steel.
Supply: 3/8″ NPT female inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYE/FACE WASH, WALL MOUNTED, ALL-PVC CONSTRUCTION MODEL : G1782
Application: Eye/face wash for wall mounting. Constructed entirely in PVC and PVC-coated brass. Ideal for use in industrial environments where harsh acids or caustics are present. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.
Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS PVC-coated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
Bowl: 11-3/4″ diameter orange ABS plastic.
Mounting: Heavy duty PVC wall bracket.
Supply: 1/2″ NPT female inlet.
Waste: 1-1/2″ socket weld female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
- GRN Green ABS plastic bowl.
- YEL Yellow ABS plastic bowl.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYE/FACE WASH, WALL MOUNTED, ALL-STAINLESS STEEL MODEL : G1781
Application: Eye/face wash for wall mounting. Constructed entirely in stainless steel. Ideal for use in highly corrosive environments and cleanroom applications. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.
Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS stainless steel stay-open ball valve. Valve has stainless steel ball and PTFE seals.
Bowl: 11-1/8″ diameter stainless steel.
Mounting: Heavy duty stainless steel wall bracket.
Supply: 1/2″ NPT female inlet.
Waste: 1-1/4″ NPT female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
- BC Stainless steel bowl cover. Cover protects unit against contaminants. Cover is automatically raised when unit is activated.
- T Chrome plated brass tailpiece and trap with 1-1/2″ IPS waste connection.
- TP 1-1/2″ OD chrome plated brass tailpiece.
Read moreQuick View -

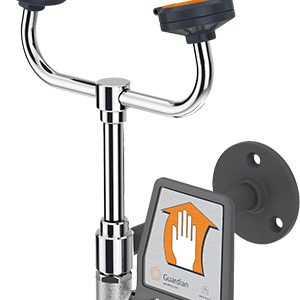

Read moreQuick ViewGUARDIAN EYE/FACE WASH, WALL MOUNTED, LESS BOWL MODEL : G1771
Application: Eye/face wash for wall mounting. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face. Unit is provided without bowl or drain for waste water. Note: Floor drain should be provided underneath unit to prevent accumulation of water on floor.
Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
Construction: Polished chrome plated brass.
Supply: 1/2″ NPT female inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
- HS Auxiliary hand-held drench hose for rinsing eyes, face or body.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYE/FACE WASH, WALL MOUNTED, STAINLESS STEEL BOWL AND COVER MODEL : G1750BC
Application: Eye/face wash for wall mounting. Unit has stainless steel cover to protect bowl from dust, dirt and other contaminants. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.
Spray Head Assembly: Two FS-Plus™ spray heads. Each head has an internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
Bowl: 11-1/2″ diameter stainless steel bowl with cover. Cover is raised automatically when flag handle is activated. Cover closes when handle is returned to closed position.
Mounting: Heavy duty cast aluminum wall bracket with powder coated finish.
Supply: 1/2″ NPT female inlet.
Waste: 1-1/4″ NPT female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
- HS Auxiliary hand-held drench hose for rinsing eyes, face or body.
- T Chrome plated brass tailpiece and trap with 1-1/2″ IPS waste connection.
- TP 1-1/2″ OD chrome plated brass tailpiece.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYE/FACE WASH, WALL MOUNTED, STAINLESS STEEL BOWL AND SKIRT MODEL : G1753
Application: Eye/face wash for wall mounting. Unit has stainless steel bowl and wrap-around skirt to conceal valve, drain and piping. Ideal for laboratories and other areas where clean, uncluttered appearance is desired.
Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
Bowl: 11-1/2″ diameter stainless steel with wraparound skirt.
Mounting: Welded stainless steel wall bracket.
Supply: 1/2″ NPT female inlet.
Waste: 1-1/4″ NPT female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
- HS Auxiliary hand-held drench hose for rinsing eyes, face or body.
- T Chrome plated brass tailpiece and trap with 1-1/2″ IPS waste connection.
- TP 1-1/2″ OD chrome plated brass tailpiece.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYE/FACE WASH, WALL MOUNTED, STAINLESS STEEL BOWL MODEL : G1750
Application: Eye/face wash with stainless steel bowl for wall mounting. Two large FS-Plus™ spray-type outlet heads deliver a flood of water for rinsing eyes and face.
Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals.
Bowl: 11-1/8″ diameter stainless steel.
Mounting: Heavy duty cast aluminum wall bracket with corrosion resistant powder coated finish.
Supply: 1/2″ NPT female inlet.
Waste: 1-1/4″ NPT female outlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
- BC Stainless steel bowl cover. Cover protects unit against contaminants. Cover is automatically raised when unit is activated.
- HS Auxiliary hand-held drench hose for rinsing eyes, face or body.
- T Chrome plated brass tailpiece and trap with 1-1/2″ IPS waste connection.
- TP 1-1/2″ OD chrome plated brass tailpiece.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYESAFE FAUCET-MOUNTED EYEWASH MODEL : G1100
Guardian EyeSafe™ Eyewash, 2 Heads, Faucet Mounting, Pull Knob Operation, Aluminum Eye Wash Handle, Forged Brass Valve, Chrome Plated Brass Fitting, 55/64-27 FNPT Inlet Fitting, 1 in Diameter Head, Specifications Met: ANSI Z358.1-2014
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYESAFE FAUCET-MOUNTED EYEWASH WITH FAUCET CONTROL VALVE MODEL : G1200
Application: EyeSafe™ faucet-mounted eyewashes convert any faucet into an emergency eyewash station without interfering with normal faucet operation. An EyeSafe™ unit can be installed at any sink, close to where accidents might occur. In an emergency, the unit is quickly located and activated, and provides an unlimited supply of potable water for rinsing the user’s eyes. Faucet control valve offers single motion eyewash activation by allowing the pull knob to control water flow while the faucet remains ‘on’ at a preset temperature.
Operation: Unlike conventional faucet-mounted eyewashes, the G1200 offers the ability to activate the eyewash in a single motion. The unit is equipped with a diverter valve for the eyewash and a separate control valve for the faucet. Once the unit is installed on a faucet, the faucet may be opened and left “on” to a preset temperature. To use the faucet, the flow of water is controlled by a quarter-turn ball valve and knob at the bottom of the eyewash. To use the eyewash, simply pull the knob on the front of the eyewash. Since the faucet is open, this is the only step required to activate the eyewash. Water pressure holds the eyewash in operation, leaving the user’s hands free. To return to normal faucet operation, push the knob in or turn off the faucet.
Outlet Heads: Outlet heads are mounted 3″ apart and deliver a soft, aerated flow of water. Heads angle forward toward user. Angle of heads is adjustable to permit full coverage and avoid splashing. Furnished with float-off dust covers to protect outlet heads.
Eyewash Valve: Forged brass diverter valve.
Faucet Control Valve: Quarter turn ball valve with chrome plated brass ball, molded PTFE seals and plastic handle.
Inlet: Body has 55/64″-27 female thread. Furnished with three adaptors (15/16″-27, 13/16″-27 and 3/8″ NPS) for installing on most commonly used faucets, including laboratory-type faucets.
Outlet: Furnished with removable aerator on bottom.
Quality Assurance: Each unit is completely assembled and water tested prior to shipment.
Important: Faucet-mounted eyewashes are intended solely as supplemental units in addition to dedicated, plumbed eyewash equipment installed in the workplace.
Faucet-mounted eyewashes should be used with cold or warm water only. Use of hot water might cause scalding.
Leaving a faucet “on” with a valve at the outlet closed can cause cross-mixing of the hot and cold water. The water supply lines or the faucet should be furnished with check valves to prevent such mixing from occurring. This unit should not be installed on a faucet with an atmospheric vacuum breaker, as the faucet control valve downstream of the vacuum breaker will interfere with its function. Guardian Equipment recommends consulting with local plumbing code authorities prior to installing this unit.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYESAFE-X FAUCET-MOUNTED EYEWASH WITH FAUCET CONTROL VALVE MODEL : G1101
EyeSafe faucet-mounted eyewashes convert any faucet into an emergency eyewash station without interfering with normal faucet operation. An EyeSafe unit can be installed at any sink, close to where accidents might occur. In an emergency, the unit is quickly located and activated, and provides an unlimited supply of potable water for rinsing the user’s eyes.
- Outlet heads mounted 3″ apart, angled forward toward user
- Pull knob to activate eyewash
- Water pressure holds eyewash in operation, leaving user’s hands free
- Push knob or turn off faucet to return to normal faucet operation
- Removable aerator on bottom
Read moreQuick View -
Read moreQuick View
GUARDIAN EYESAFE-X FAUCET-MOUNTED EYEWASH WITH FAUCET CONTROL VALVE MODEL : G1201
Application: EyeSafe™ faucet-mounted eyewashes convert any faucet into an emergency eyewash station without interfering with normal faucet operation. An EyeSafe™ unit may be installed at any sink, close to where accidents might occur. In an emergency, the unit is quickly located and activated, and provides an unlimited supply of potable water for rinsing the user’s eyes.
Operation: Unlike conventional faucet-mounted eyewashes, the G1201 offers the ability to activate the eyewash in a single motion. The unit is equipped with a diverter valve for the eyewash and a separate control valve for the faucet. Once the unit is installed on a faucet, the faucet may be opened and left “on” to a preset temperature. To use the faucet, the flow of water is controlled by a quarter-turn ball valve and knob at the bottom of the eyewash. To use the eyewash, simply pull the knob on the front of the eyewash. Since the faucet is open, this is the only step required to activate the eyewash. Water pressure holds the eyewash in operation, leaving the user’s hands free, To return to normal faucet operation, push the knob in or turn off the faucet.
Outlet Heads: Outlet heads are mounted 5″ apart and deliver a soft, aerated flow of water. Heads angle forward and inward toward user. Angle of heads is adjustable to permit full coverage and avoid splashing. Furnished with float-off dust covers to protect outlet heads.
Eyewash Valve: Forged brass diverter valve.
Faucet Control Valve: Quarter turn ball valve with chrome plated brass ball, molded TFE seals and plastic handle.
Inlet: Body has 55/64″-27 female thread. Furnished with three adaptors (15/16″-27, 13/16″-27 and 3/8″ IPS) for installing on most commonly used faucets, including laboratory-type faucets.
Outlet: Furnished with removable aerator on bottom.
Quality Assurance: Each unit is completely assembled and water tested prior to shipment.
Important: Faucet-mounted eyewashes, whether manufactured by Guardian Equipment or other companies, require two motions to operate (turn on water, pull knob to activate eyewash flow). Therefore, Guardian does not believe that these units meet the provisions of ANSI Z358.1-2014 as eyewash units. These units are intended solely as supplemental units in addition to dedicated, plumbed eyewash equipment installed in the workplace.
Faucet-mounted eyewashes should be used with cold or warm water only. Use of hot water might cause scalding.
Read moreQuick View -
Read moreQuick ViewGUARDIAN EYEWASH, DECK MOUNTED AUTOFLOW 90 SWIVEL, ALL-STAINLESS STEEL, RIGHT HAND MOUNTING MODEL : G1895
Application: All-stainless steel AutoFlow™ eyewash for mounting on counter next to sink. Unit is constructed entirely in stainless steel. Ideal for use in highly corrosive environments, cleanrooms and pharmaceutical applications. Swinging the spray head assembly horizontally out over the sink activates the water flow. The unit remains in operation until the spray head assembly is swung back into the storage position, closing the valve.
Spray Head Assembly: Two GS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from the water flow.
Valve: 1/2″ IPS stainless steel plug-type valve with PTFE coated O-ring seals. Swinging head assembly from storage to operational position opens orifice and activates water flow. Unit remains in operation until head assembly is returned to storage position.
Strainer: Unit is furnished with in-line strainer to protect valve and spray heads from debris in water line.
Mounting: Unit is mounted on right side of sink. Furnished with mounting shank, positioning lugs, locknut and washer for securing unit to counter.
Construction: Type 316 stainless steel.
Supply: 1/2″ NPT female inlet.
Sign: ANSI-compliant identification sign.
Quality Assurance: Unit is completely assembled and water tested prior to shipment.
AVAILABLE OPTIONS
- G6020 Thermostatic mixing valve to blend hot and cold water to deliver tepid water. Valve has flow capacity of 13 gallons (49 liters) per minute at 30 PSI (2.1 bar) pressure drop. Valve can be used to supply emergency eyewash, eye/face wash or drench hose unit. Depending on water supply size and pressure, valve can supply multiple units.
- LH Left hand mounting.
Read moreQuick View
