Horizontal Lifeline / Installation / Inspection

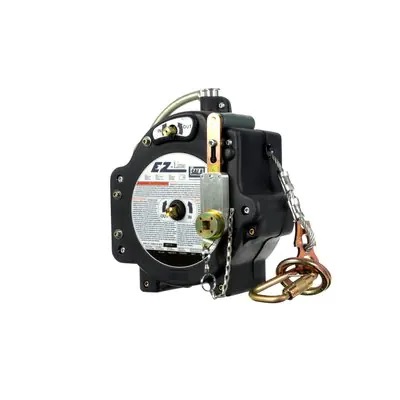

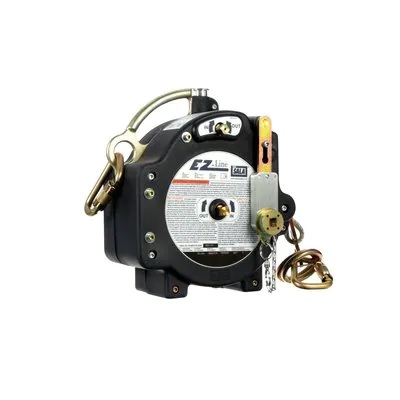

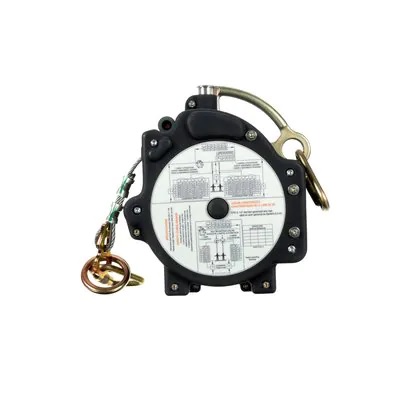

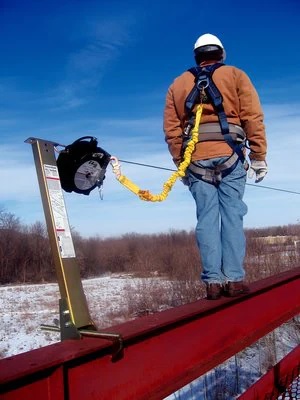

3M™ DBI-SALA® EZ-Line™ Retractable Horizontal Lifeline System 7605060

  • 60 ft. (18.3 m) retractable system can be set at any length
  • Rugged 1/4″ (6.3mm) 7×19 galvanized cable lifeline
  • Ergonomic easy to carry case
  • Extremely lightweight and portable design

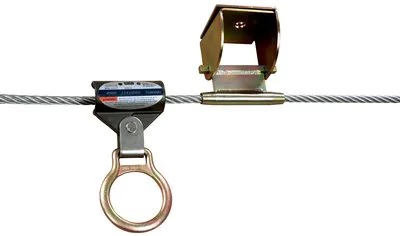

3M™ DBI-SALA® Sayfline™ Permanent Multi-Span Horizontal Lifeline System 7603070



  • Off the shelf permanent multi-span horizontal system designed for user installation
  • 100 ft. (30.5 m) system includes all mounting hardware (order sleeve separately)
  • Corrosion resistant 3/8″ (9.5mm) 7×19 stainless steel cable lifeline (galvanized steel also available)
  • Bypassable intermediate brackets – one per 30 ft. (9.1m) span included (additional available model 7608001)

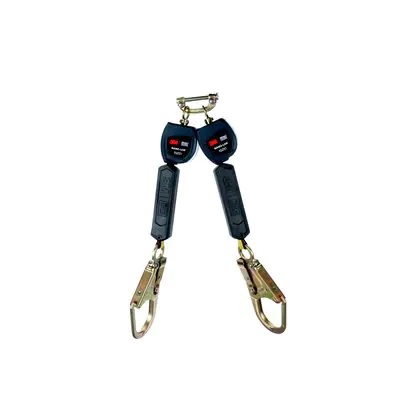

3M™ DBI-SALA® Nano-Lok™ Twin-Leg Quick Connect Self Retracting Lifeline, Web 3101280

  • Lightest ANSI certified personal SRL that allows for knee level tie-off
  • Smart activating brake system combines ANSI Class A & B to provide fall clearance as low as 4 ft.- up to 13 ft. less than lanyards
  • Lightweight speed connect system reduces connect and disconnect time by up to 60%
  • Durable nitrile rubber energy absorber cover designed to last 4 times longer
  • Reduced energy abosorber size is more user friendly and convenient
  • Twin-leg, 6 ft. (1.8m) 3/4″ (19mm) Dyneema® fiber and polyester web lifeline
  • AAF 900lbs and MAF 1,350lbs
  • Down to knee level tie-off for 310lbs. capacity, 420lbs. capcity shoulder height and higher
  • Self-locking steel rebar hooks on lifelines
  • 3M™ Connected Safety ID (CSID) equipped
  • Wide variety of configurations available

6 ft. (1.8m) twin-leg lifelines with 3/4″ (19mm) Dyneema® fiber and polyester web and steel rebar hooks, quick connector for harness mounting.

Nano Lok™ is ergonomically designed for ease of use and is ideal for direct connection to most harnesses. The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement. Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are more than 30 models to choose from to suit almost any application. Nano Lok™ locks quickly—stopping a fall within inches—providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.
